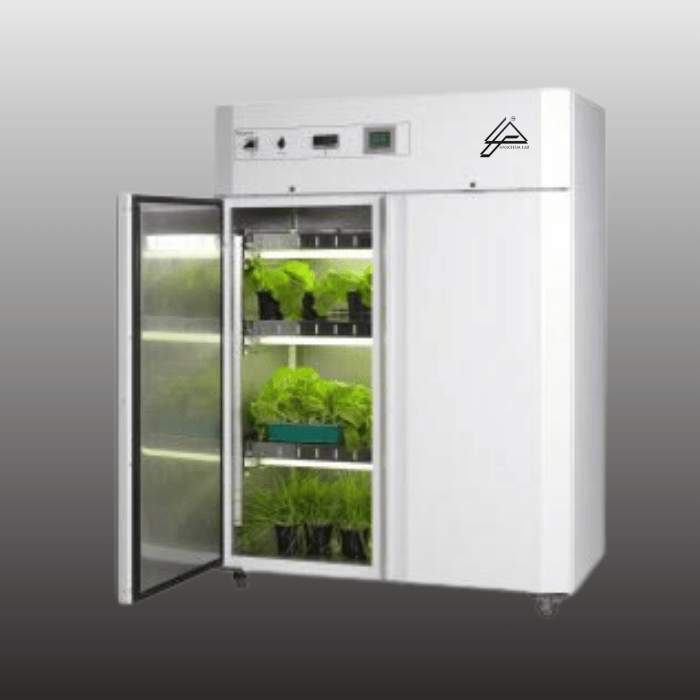

Plant growth chamber

Plants can live in a controlled environment in a plant growth chamber. Plant development and function may be studied concerning several environmental factors resulting from these chambers, including light, temperature, humidity, and other atmospheric parameters.

Plant growth chamber Double Walled highly insulated inner Chamber made of stainless steel (304 grade ), Outside made of M.S. duly Powder coated. Temp. range 5℃ to 50℃ under normal conditions & 15℃ to 50℃,Accuracy ±1℃ when lights both sides and top are ON. Humidity ranges 55% to 90% ±5% supplied with 0-24 hours Timer. Electronic digital temperature and Humidity indicator cum controller control temperature and Humidity. CFC Free Compressor Does refrigeration and S.S . Tubular Heaters do Heating .

Specifications Plant growth chamber

Part No.	Chamber. Cap.	Approx. Ltrs. Cap.
ALS-PGC-1	4cu.ft.	110
ALS-PGC-2	6cu.ft.	170
ALS-PGC-3	8cu.ft.	227
ALS-PGC-4	10cu.ft.	285
ALS-PGC-5	12cu.ft.	340
ALS-PGC-6	20cu.ft.	570
ALS-PGC-7	30cu.ft.	850

PLC Features of Plant growth chamber

Robust control, safety, atomization, and communication via PLC. 1100 lines storage for efficient data handling. Ethernet PC communication for seamless connectivity. 4.3” touch screen display enables intuitive interaction. Advanced safety measures ensure secure operations. Effortlessly enhance your processes with these comprehensive PLC features.
