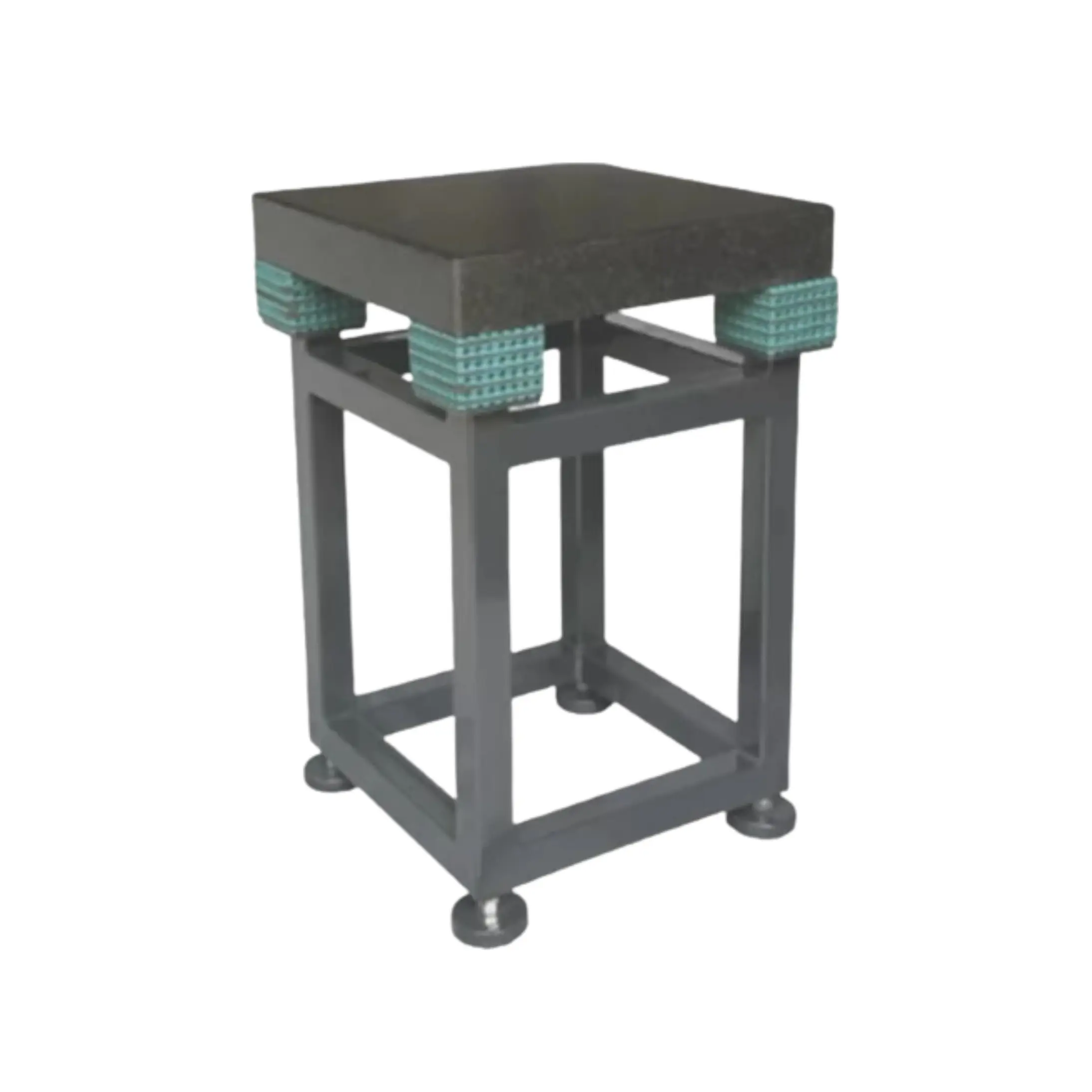

Shock Resistant -Anti-Vibration Table with Elastomeric Mounts

Anti-Vibration Table isolated Elastomeric /Shock Resistant

Our Anti-Vibration Table isolated Elastomeric– Series DIT-E are ideal for Testing / Quality Laboratories co-located with industrial units having high degree of vibration due to working machines like presses, hammers, VMCs etc. The Vibrations are isolated using Double-Layered Dp Elastomeric Sheets. These Anti-Vibration Tables have a Granite Surface Plate with Grade-1 accuracy for very precise measuring accuracies. We can select single or dual layer insulation plate depending upon the vibrations present in the Testing Laboratory. These Vibration Tables provide the most economical solution where high frequency vibrations need to be removed. The passive vibrations from nearby motors and other heavy machinery is reduced by 65-70%. The vibration isolation efficiency of these tables can be further increased by placing more than 2 layers of our Dp insulation Sheets.

Categories: Electrochemistry, Lab Instruments, Test & measurement, Testing Houses Tags: Anti Vibration Table, Anti-Vibration Table isolated using Elastomeric material – Series DIT-E, Shock Resistant / Anti-Vibration Table with Elastomeric Mounts, Table

Description
Reviews (0)

Applications

Applications include surface roughness testers, high precision weighing scales, TGA, digital hardness testers, and high resolution microscopes. We are able to create a highly accurate and shock-resistant anti-vibration table using this specialized design.

The Vibration Isolated Table (VIT) finds usage in critical areas where the reading accuracy of instruments like Balances, Galvanometers, Electronic Microscopes, and Atomic Absorption Spectrophotometers, is affected by Vibrations

Specification of Anti-Vibration Table isolated Elastomeric
Table Top Dimension	(600×450)mm
Table Height ( with Granite Top)	900mm
Load Capacity	upto 1250kgs
Levelling Adjustment Range	8 mm
Natural Frequency	7-8 Hz
Granite Top Surface thickness	80 mm with Grade-1accuracy Velvet Finish. Surface Plate Insulated from Table Structure with a set of 4 stacks of 5- Layered Dp Insulation Sheet.
Levelling Adjustment Legs (DLM Mounts) at the bottom.
Table metal Part- Power Coated

Anti-Vibration Table isolated Elastomeric play a crucial role

In Testing and Quality Laboratories situated in industrial settings with high levels of vibration from operational machinery such as presses, hammers, and VMCs. We specifically designed to synergize with analytical and laboratory balances, ensuring precise measurements.

Grade-1 accuracy

Crafted with a Granite Surface Plate boasting Grade-1 accuracy, our Anti-Vibration Tables guarantee impeccable measuring precision for critical applications. Tables use dual damping: under granite, at base with leveling. This dual approach not only facilitates proper table leveling but also incorporates an insulation plate to eliminate any unwanted oscillations.

Furthermore, our offerings provide flexibility in damping options, allowing clients to choose between Elastomeric, Pneumatic, or Spring-Based Damping based on the unique vibration profiles in their Testing Laboratory. This tailored approach ensures optimal performance in diverse environmental conditions.

The Vibration Isolated Table (VIT) is indispensable in environments where instrument accuracy is imperiled by extraneous vibrations. Instruments such as Analytical Balances, Hardness Testers, Spectroscopes, Microscopes, and Roughness Testers rely on the VIT to deliver dependable and precise results. Additionally, the VIT is instrumental for Galvanometers, Profile Projectors, Atomic Force Microscopes, Roundness Testers, Electronic Microscopes, and Atomic Absorption Spectrophotometers, safeguarding their readings from disruptive vibrations.

our Anti-Vibration Table isolated Elastomeric fortified with Grade-1 Granite Surface Plates and versatile damping options including Elastomeric, Pneumatic, or Spring-Based mechanisms. We offer tailored solutions for laboratories facing high levels of vibration.

Essential for precise readings in various sensitive instrument applications. Trust in our expertise to elevate the precision and reliability of your critical measurements.
