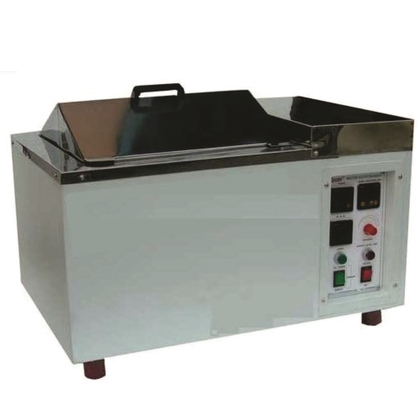

Rectangular Water Bath Double Walled

Double walled inner chamber made of Stainless Steel outer made of S.S./Mild Steel duly painted with enamel. Top has 75mm holes with concentric rings. Temperature range up to 99℃. Accuracy +1℃ thermostatically Controlled fitted with Neon Lamp; indicator, main switch and workable on 220 Volt 50 Hz. A.C.

Rectangular Water Bath Double Walled with chamber, featuring stainless steel inner and exterior walls coated with enamel, offers a reliable and versatile solution for various laboratory applications. The presence of 75mm holes with concentric rings on the top allows for the insertion of test tubes, flasks, or other containers, providing efficient heat transfer and temperature control.

Part No.	size
ALS WBD-1	300X250X100mm	(6 holes of 3″Dia)
ALS WBD-2	300X300X100mm	(9 holes of 3″Dia)
ALS WBD-3	350X400X100mm	(12holes of 3″Dia)
Additional Accessories:
Digital temperature controller cum indicator (DTI)

TECHNICAL SPECIFICATIONS

Simple to operate water bath.
LCD with touch button for all process data. Setting the times value in minutes (min).
1-point temperature controller.
Electronic monitoring of the temperature controller.
Bath interior, cover, sieve plate, and heating element are made of stainless steel. Bath vessel with drain valve.
Heat insulation lid made of stainless steel, double-walled with inner curvature. Lid and perforated tray as standard.
Working temperature range-Ambient +5…100°C. Temperature stability 0.5°C.
Heater power 500 to 2000w. Temperature uniformity 0.5°C. Power supply 220V 50/60 Hz.
