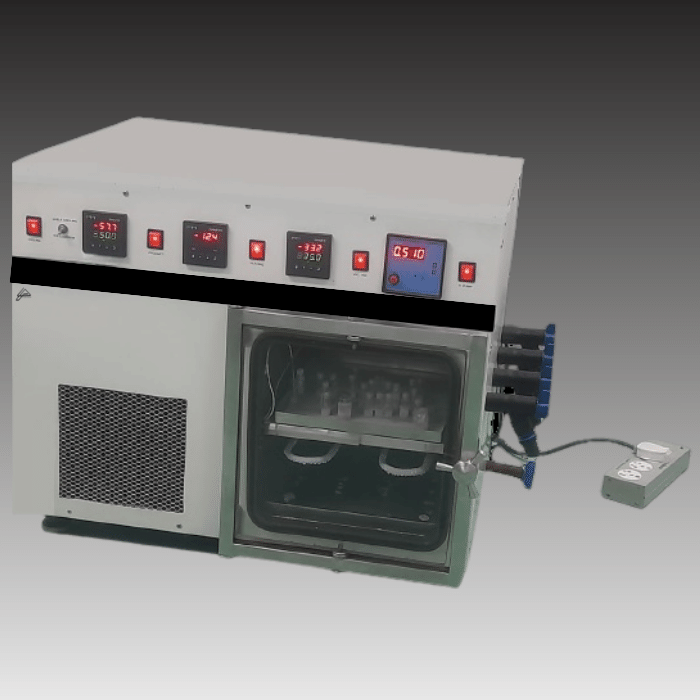

Versatile Capacity and Condenser
With the capacity to accommodate 6 round bottom flasks, our freeze dryer enables larger-scale operations. Furthermore, it provides flexibility in condenser temperature settings for customized Freeze Dryers / Lyophilizers.
Direct Drive with Anti Suck Back Device:
The freeze dryer features a direct drive system with an anti-suck back device, ensuring smooth and reliable operation. This mechanism prevents backflow and maintains optimal vacuum conditions throughout the freeze-drying process, enhancing the efficiency and quality of the final product.
Powerful Air-Cooled Cascade:
Equipped with a powerful air-cooled cascade, our freeze dryer guarantees efficient and rapid cooling. This feature is essential for achieving optimal freeze-drying results by rapidly reducing the temperature and facilitating the sublimation of frozen samples.
Hermetically Sealed Compressors and SS Manifold:
To ensure reliable and durable performance, our Freeze Dryer / Lyophilizer utilizes hermetically sealed compressors. These compressors, attached to a round-shaped stainless steel manifold, provide a secure and efficient cooling system. The manifold features 6 rubber ports for easy loading of the round bottom flasks and is mounted on swivel casters, offering mobility and convenience.
Precise Temperature Control and Ultimate Vacuum:
With precise temperature control capabilities, our Freeze Dryer / Lyophilizer operates at temperatures as low as -40℃ and even -80℃ for specific models. This precise control allows for the preservation of delicate samples during the freeze-drying process. Achieve optimal freeze drying conditions with ultimate vacuum of 10 microns (without load) and 20-30 microns (on load).
Accessories extra required at additional cost: |
| Vacuum pump 100 LPM (VP-1) |
| Vacuum pump 200 LPM (VP-2) |
| Inbuilt pre-freezing with rotary attachment available only with-80℃ in model MFD-3 and MFD-5(PF-3&5) |
| Standalone -40℃±5℃ pre Freezer with rotator attachment with cooling temp.-40℃ |
| 150ml bottle round base for vial and drying(RB-150) |
| 300ml bottle round base for vial and drying(RB-300) |
| A silicon adapter for 150ml and 300ml round bottles(SARB) |
| Heating rack system for freeze dryer for samples in Petridis(RSP) |
| Centrifugal attachment for drying (CAD) |
Experience the convenience of loading with the rubber ports and the flexibility of condenser temperature options. Trust our freeze dryer for exceptional freeze drying capabilities in various applications.
